As you probably already know, when you build apps today, you’ll likely need to use animations and transitions to enhance the UI where possible. With Angular’s animation framework we have access to some pretty powerful features which allow us to do things that may not be possible with CSS alone. In this video we’re going to look at a little, fun and crazy example using the Angular keyframes() animation function. Alright, let’s get to it!

Before we get too far along, it’s important to note here that I’ve already created a couple of posts focused on the animation framework. First, I’ve got an animation basics post where I cover how to include the animations module and then how to use some of the basic functions of the API to create a simple state-based animation.

Then I’ve got a post where we build off the example in the first video and change to animate items as they are added to and removed from the DOM with the :enter and :leave aliases. So, if you’re not familiar with these concepts, the examples in this video might not make as much sense as they would if you were to watch them first.

Angular CDK Overlay Tutorials:

• Learn the Basics
• Enter and Leave Animations

Ok, onto the example for this video.

The Demo Application

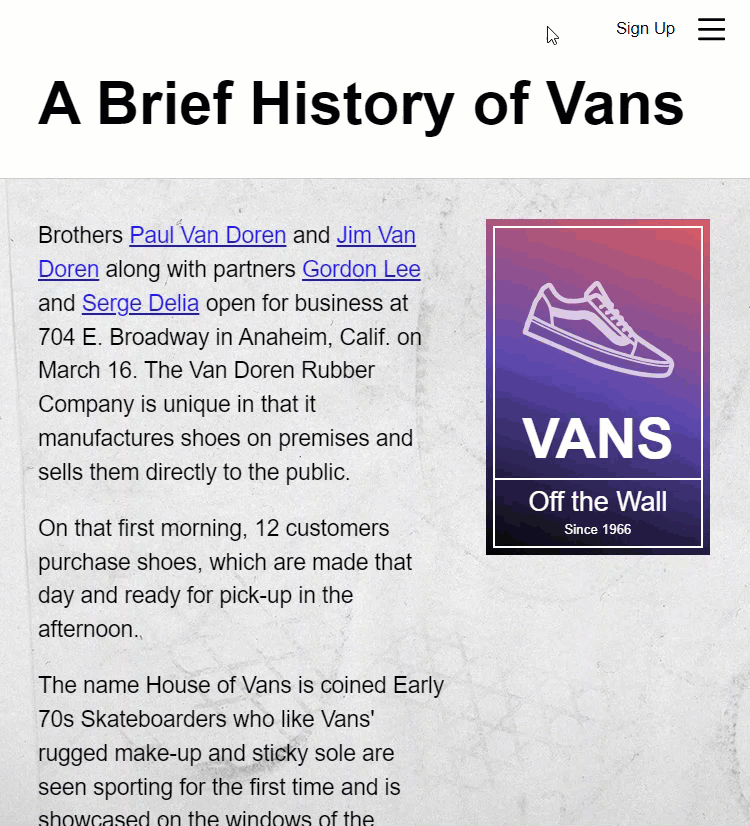

We’ve been working on this demo application for the Vans shoe brand. We have this menu that we’ve set up to transition in from the right when it’s opened and then out to the right when it’s closed.

What we want to do now is, we want to change this animation to something a little more crazy like this where it has multiple different things going on as it transitions from one state to another.

I know this is a pretty crazy example and we probably wouldn’t really want to do this sort of thing in the real world, but in this case, it’s a perfect opportunity to explore the keyframes() function.

How the Angular Animation keyframes() Function Works

This function is yet another powerful piece of the animations API. It accepts a parameter of steps. These steps consist of an array of AnimationStyleMetadata objects which are essentially objects of styles for each keyframe step.

  keyframes(steps: AnimationStyleMetadata[]) {}

Converting an Existing Basic Open Transition to a More Complex Keyframe Animation

Ok, let’s start by modifying our existing animation to use keyframes to see if we can pull off this crazy animation. Here we can see the :enter and :leave animation that we added in the previous post.

main.ts

const hidden = { transform: 'translateX(120%)' };
const visible = { transform: 'translateX(0)' };
const timing = '1s ease-in';
...

animations: [
    trigger('openClose',[
        transition(':enter', [
            style(hidden),
            animate(timing, style(visible))
        ]),
        transition(':leave', [
            style(visible),
            animate(timing, style(hidden))
        ])
    ])
]

There’s no need for us to change this away from an :enter and :leave animation so we’ll leave that aspect alone for now. Let’s start with the :enter transition. We can remove the old style() function because it’s not needed with the way keyframes work. To use the keyframes() function, we still need to use the animation() function. So we can add the keyframes() function as the second parameter, and we need to be sure that it gets imported too.

import { ..., keyframes } from '@angular/animations';

animations: [
    trigger('openClose',[
        transition(':enter', [
            animate(timing, keyframes())
        ]),
        ...
    ])
]

Adding Steps to the keyframes() Function With the Animations style() Function

Ok so we need to pass this function an array of steps.And guess what, these steps are going to look super familiar from our previous examples because we use the style() function to define the styles for each step in our animation.

To pull off this animation, we should be able to do it all with transforms, so let’s add a transform. We’ll pass it the transform styles as a string. We need it to start off the screen to the right so let’s go with a translateX of one hundred twenty percent like we used in our old example. Also, let’s add a scale of point five to shrink it down.

animations: [
    trigger('openClose',[
        transition(':enter', [
            animate(timing, keyframes([
                style({ transform: 'translateX(120%) scale(0.5)' })
            ]))
        ]),
        ...
    ])
]

Ok, that’s our first step. For the second step, let’s bring it into our page before we rotate it. Let’s go ahead and duplicate our first step. Then, let’s change our translateX value to negative one hundred twenty percent this time. And we’ll leave the scale as is.

animations: [
    trigger('openClose',[
        transition(':enter', [
            animate(timing, keyframes([
                ...
                style({ transform: 'translateX(-120%) scale(0.5)' })
            ]))
        ]),
        ...
    ])
]

Let’s duplicate this step now. This is going to be the step where we rotate the menu. So, we’ll leave the translateX value at negative one twenty. Let’s increase the scale a little to zero point six five. And now, let’s add a rotate function. Here, we’ll rotate the menu three hundred and sixty degrees to rotate in a complete circle.

animations: [
    trigger('openClose',[
        transition(':enter', [
            animate(timing, keyframes([
                ...
                style({ transform: 'translateX(-120%) scale(0.65) rotate(360deg)' })
            ]))
        ]),
        ...
    ])
]

Ok, for the last step, let’s duplicate this again. Here we’ll want to translate to our final position, so we’ll give it a value of zero. We’ll also want to scale to our final value, so we’ll give it a value of one. And, we’ll leave the rotate as is because if we were to remove it, the menu would rotate back to zero which we don’t want it to do.

animations: [
    trigger('openClose',[
        transition(':enter', [
            animate(timing, keyframes([
                ...
                style({ transform: 'translateX(0) scale(1) rotate(360deg)' })
            ]))
        ]),
        ...
    ])
]

Ok, let’s save this and see how we did.

Ok, that looks great, much like the original example. One thing I don’t like though is that I feel like the rotation happens really fast. Id rather slow down that chunk of the animation. Well, with CSS keyframes this is possible because we can just adjust the percentage of time a specific range in a keyframe animation will take.

Well, we can do the same with the keyframes() function. As part of the AnimationStyleMetadata object, we have an offset property that we can use. This defines the point in the animation where the style change occurs.

Altering the Timing of the Keyframes With the Offset Property

When we leave the offsets off like we did here, each change is offset an equal amount. So, the first change happens at an offset of zero. The second change occurs at an offset of point three, three. The third change occurs at an offset of point six, six. And the final change occurs at one.

animations: [
    trigger('openClose',[
        transition(':enter', [
            animate(timing, keyframes([
                style({ transform: 'translateX(120%) scale(0.5)', offset: 0 }),
                style({ transform: 'translateX(-120%) scale(0.5)', offset: 0.33 }),
                style({ transform: 'translateX(-120%) scale(0.65) rotate(360deg)', offset: 0.66 }),
                style({ transform: 'translateX(0) scale(1) rotate(360deg)', offset: 1 })
            ]))
        ]),
        ...
    ])
]

So, let’s change these a little so the rotation period takes a little longer. We’ll leave the first step at zero, but we’ll change the second step to zero point one so that it’ll happen much quicker. Also, let’s adjust the third step so that it takes a little longer, let’s go with point six instead.

animations: [
    trigger('openClose',[
        transition(':enter', [
            animate(timing, keyframes([
                style({ transform: 'translateX(120%) scale(0.5)', offset: 0 }),
                style({ transform: 'translateX(-120%) scale(0.5)', offset: 0.1 }),
                style({ transform: 'translateX(-120%) scale(0.65) rotate(360deg)', offset: 0.6 }),
                style({ transform: 'translateX(0) scale(1) rotate(360deg)', offset: 1 })
            ]))
        ]),
        ...
    ])
]

Ok, let’s save and try this again.

Nice, that’s a little better. It’s pretty subtle but you get the point right? You can adjust the keyframe durations as needed for your animations. Ok, let’s add the close animation now.

Adding the Close Keyframe Animation in Reverse Order

We can start by copying our open animation, and we’ll paste that over our existing close animation code. Then we pretty much just need to reverse the order here to do the opposite transition on close.

So, let’s move the last step to the top and we’ll switch its offset to zero. Then, let’s move up the rotation step, and then change its offset to zero point one. Then, we need to flip the last two steps and update their offsets too.

animations: [
    trigger('openClose',[
        ...,
        transition(':leave', [
            animate(timing, keyframes([
                style({ transform: 'translateX(0) scale(1) rotate(360deg)', offset: 0 }),
                style({ transform: 'translateX(-120%) scale(0.65) rotate(360deg)', offset: 0.1 }),
                style({ transform: 'translateX(-120%) scale(0.5)', offset: 0.6 }),
                style({ transform: 'translateX(120%) scale(0.5)', offset: 1 })
            ]))
        ])
    ])
]

Ok, now that we have these inverted, let’s save and see if we got it right.

Nice, looks right when we close now, right? So again, this is a pretty crazy example. It’s really just used, in this case, to illustrate how keyframes work in Angular. I don’t recommend that you make menus that transition like this in production applications. But now, at least, you should have an understanding of how keyframes() can be used.

Now, just like I mentioned in the last two videos on Angular Animations, there’s a lot to the animation framework so I’ll go ahead and stop here for now, but I will be creating several more videos covering much more on Angular animations very soon.

Want to See It in Action?

Check out the demo code and examples of these techniques in the in the stackblitz example below. If you have any questions or thoughts, don’t hesitate to leave a comment.
